Application Features

This document outlines the key technical features of the application, including collaborative editing, image handling, and offline capabilities.

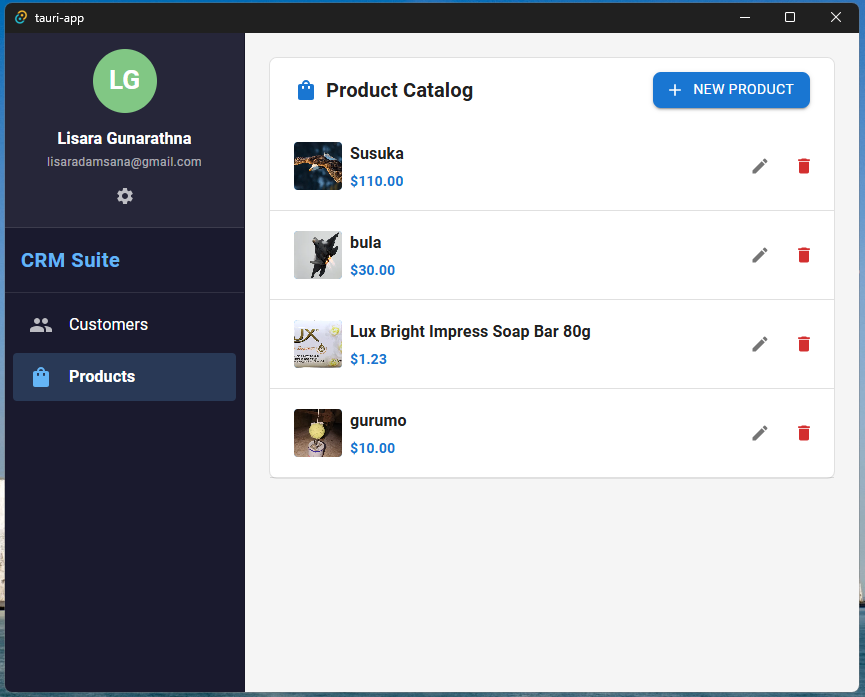

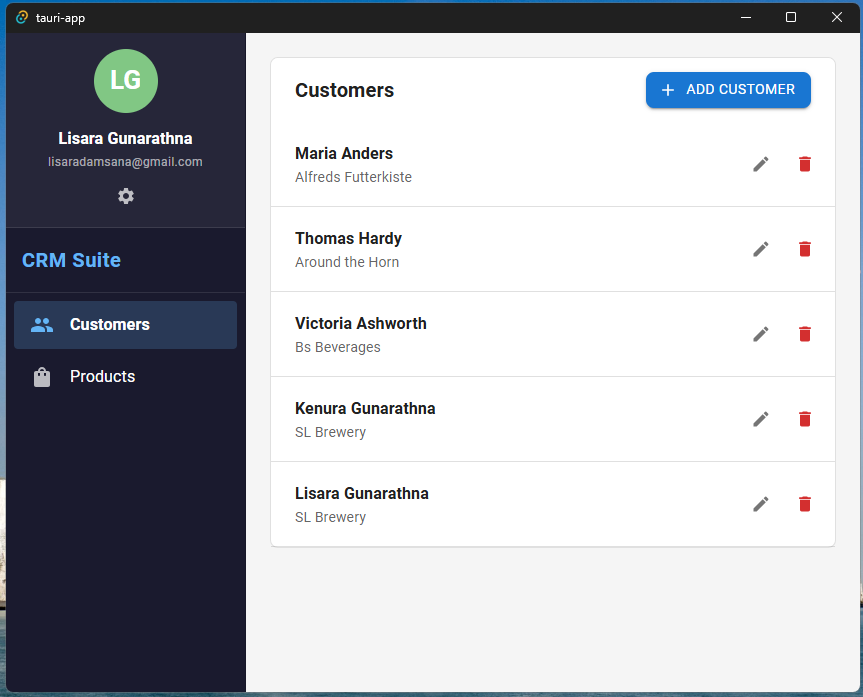

Customer List Product Catalog

Collaborative Editing​

The application leverages Lexical combined with Yjs and WebSockets to provide a real-time collaborative editing experience.

Architecture​

  • Frontend: React (Tauri) with CollaborativeLexicalEditor.
  • Backend: Cloudflare Worker with Durable Objects.
  • Protocol: Yjs sync protocol over WebSockets.

Interface​

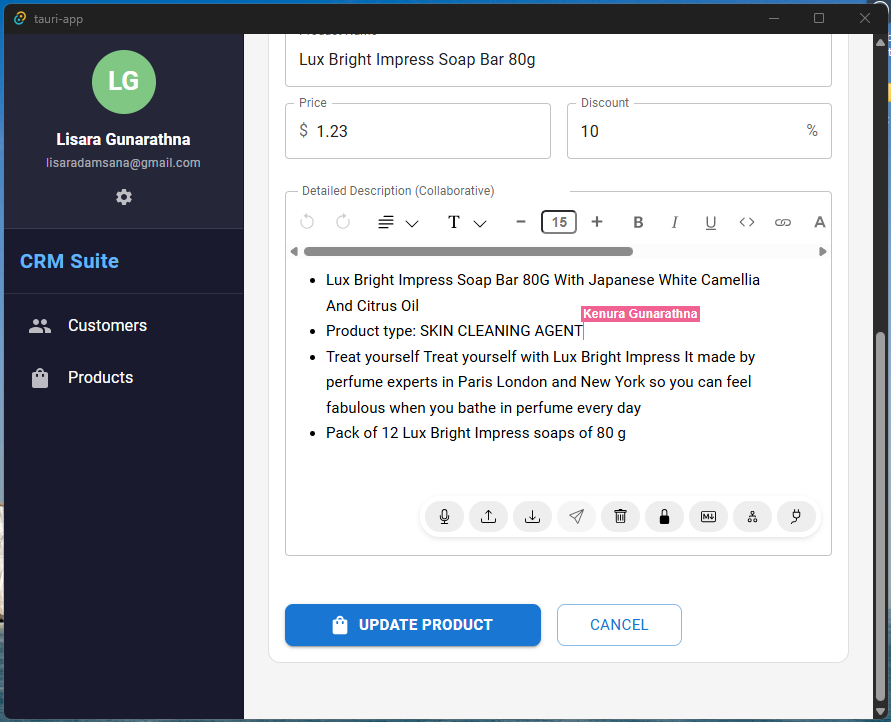

Collaborative Editor Real-time editor showing user presence

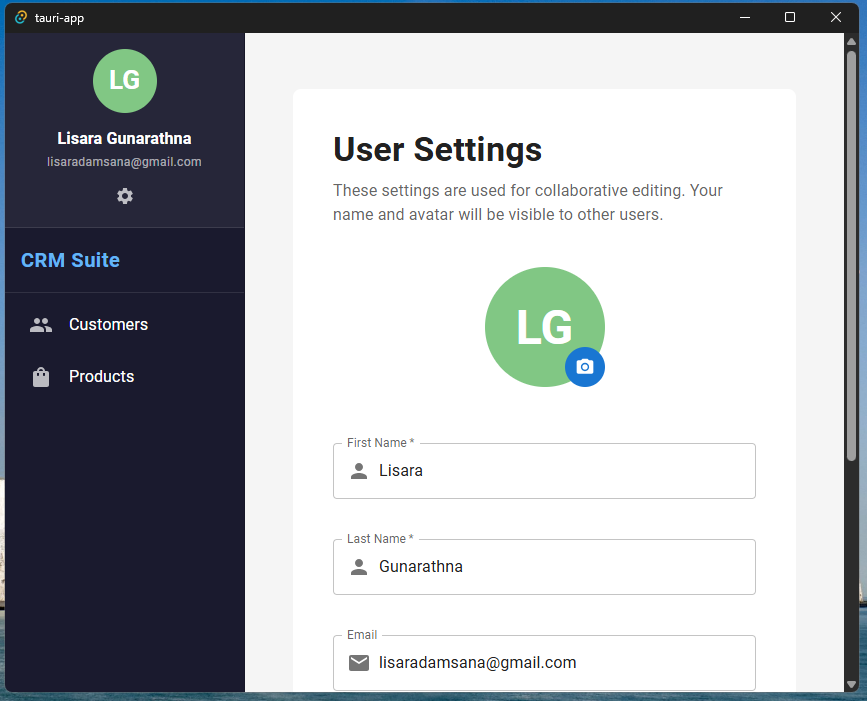

User Settings User profile settings for collaboration

Collaboration Flow​

Key Components​

  • CollaborativeLexicalEditor.tsx: Wrapper initializing the Lexical composer with collaboration context.
  • OfficialEditor.tsx: Main editor component registering plugins.
  • SyncRoom.ts (Backend): Durable Object managing the room state and connections.

Image Compression & Handling​

To ensure performance and reduce storage costs, all images uploaded via the application (Product create/update or Rich Text Editor) are automatically compressed client-side before being sent to the server.

Compression Pipeline​

We use the browser-image-compression library.

Configuration:

  • Max Width: 1200px
  • Max Size: 1MB
  • Quality: 0.8 (JPEG)

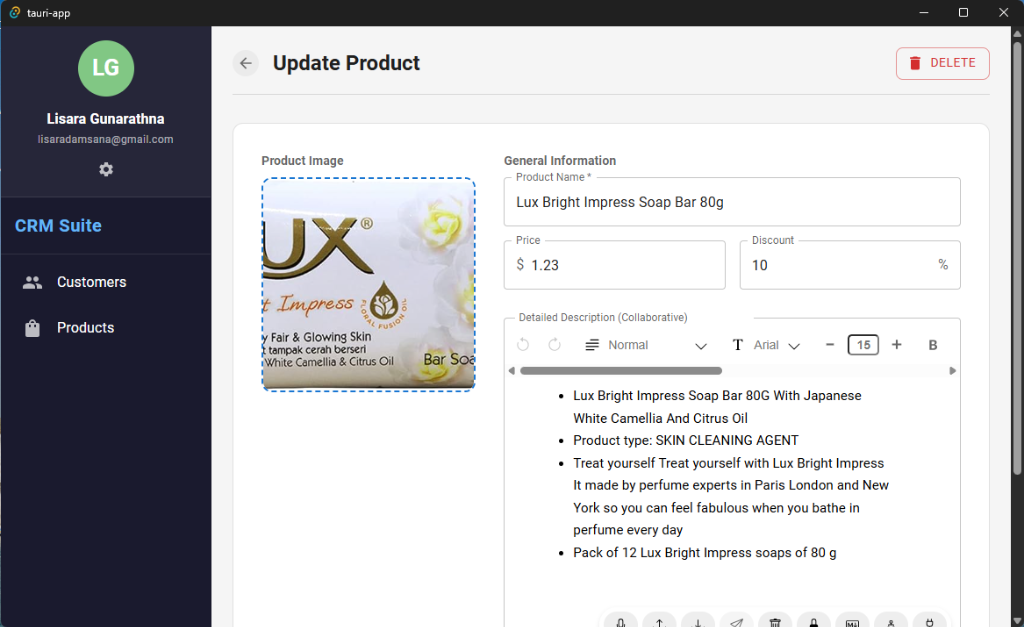

Image processing Automatic image compression on upload

Upload Flow​

Offline Capabilities​

The application uses WatermelonDB for local-first data persistence.

  • Local DB: SQLite (via Tauri plugin) running on the user's device.
  • Sync: Replicates data to/from the Cloudflare D1 backend via tRPC.
  • Optimistic UI: Changes are applied locally immediately and synced in the background.

References​
